The Mammoth Breakout Wrench was developed to meet the requirements of a hands-free breakout wrench for all conditions and any OEM Drill Rig.
The best
Breakout Wrench
in the world.
- Breakout Wrenches
- Benefits & Comparison
- Technical Specifications
- Manufactured to fit
- Product Configurations
- Mounting Brackets
- Bit Configuration
- Fitment Examples
- Gallery
- Videos
Mammoth Breakout Wrench is designed to address
- Locked joints found in the drill stem
- Wrench-slip when loosening drill rods, hammers and bits
- The lack of compatible Cross Platform Breakout Wrenches
- Unsafe Breakout procedures
Mammoth Breakout Wrench is designed to address
- SAFETY: Compliance with Mine
- SAFETY requirements for operators
- Versatile enough to adapt and fit to the requirements of an OEM Drill Rig
- Electrical controls and Hydraulics – integrated into the drill rig system
- The patented clamp action is slip proof and fits any specific OD requirement
- The clamp action is unaffected by the rod wear within the design parameters
- Our patented moveable bracket allows the wrench to be set at any operating height
- It’s mountable on a conveniently placed stand (stand-alone) or directly on the mast
- It can be adapted to suit the specific requirements of angle drilling
- Deck Bush wear does not affect the breakout action
- The torque can be increased for extreme conditions and requirements
- Can be bolt mounted on either side of the column mast
- Wrenches have been designed to handle Drill Rod ranges from 3” to 15”
- Fully repairable
Mammoth Breakout Wrench is designed to address
- Complete, Fully Automated Mammoth Breakout Wrench
- Automated or Manually Bolt Adjustable Mounting Bracket
- Stand-alone Bracket
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Right Mast Mounted
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Left Mast Mounted
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Stand-alone Bracket
- Full Hydraulic System
- Full Electrical System
- Jaws/Bits (First Set Only, Not covered in Warranty)
- Installation Manual
- 12 Month Parts Replacement Warranty
Mammoth Breakout Wrench is designed to address
- Complete, Fully Automated Mammoth Breakout Wrench
- Manually Bolt Adjustable Mounting Bracket
- Stand-alone Bracket
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Right Mast Mounted
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Left Mast Mounted
- Hydraulically Adjustable
- Manually Bolt Adjustable
- Stand-alone Bracket
- No Hydraulic System
- No Electrical System
- Jaws/Bits (First Set Only, Not covered in Warranty)
- Installation Manual
- 12 Month Parts Replacement Warranty
Pricing Excludes
- Installation by Mammoth Technician
- Spare Parts
- Duties & Taxes
- Freight & Insurance

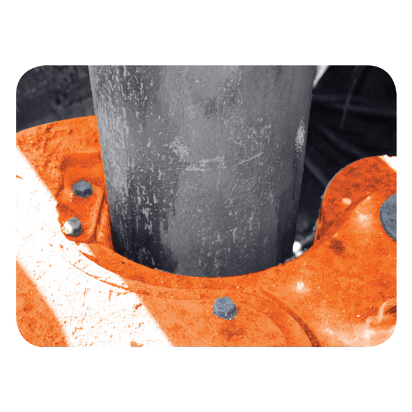

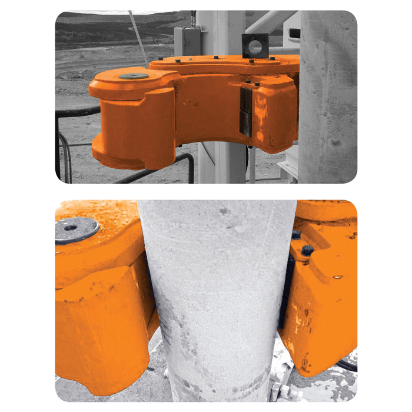

Mammoth Breakout Wrench Benefits & Comparison
Product Benefits
Product Comparison
Mammoth Breakout Wrench Technical Specifications
| Range One | Mammoth Drill Tools |
|---|---|
| Technical Specifications | All designs, specifications and components of equipment described herein are subject to change at manufacturer’s discretion at any time without prior notice. |
| Wrench Type | Fully-automated wrench or Fully-automated basic wrench |
| Clamp Type | Slide Clamp or Cam Clamp |
| Pressure Requirements | 2,500 PSI |
| Breakout Torque | 80,120 N.M | 59,09 FT/LB |
| Range | 4” up to 9” |
| Bracket Mounting | Fully-automated breakout wrench | Automated Hydraulic Adjustable Bracket |
| Fully-automated breakout wrench | Manually Bolted Adjustable Bracket | |
| Fully-automated basic breakout wrench | Automated Hydraulic Adjustable Bracket | |
| Fully-automated basic breakout wrench | Manually Bolted Adjustable Bracket | |
| Adjustable Bracket Travel | 250mm (Standard) |
| Jaw/Bit Type | Tungsten carbide |
| Hardened steel alloy (Standard) |
| Range Two | Mammoth Drill Tools |
|---|---|
| Technical Specifications | All designs, specifications and components of equipment described herein are subject to change at manufacturer’s discretion at any time without prior notice. |
| Wrench Type | Fully-automated wrench or Fully-automated basic wrench |
| Clamp Type | Slide Clamp or Cam Clamp |
| Pressure Requirements | 2,500 PSI |
| Breakout Torque | 66,200 N.M | 48,82 FT/LB |
| Range | 4” up to 9” |
| Bracket Mounting | Fully-automated breakout wrench | Automated Hydraulic Adjustable Bracket |
| Fully-automated breakout wrench | Manually Bolted Adjustable Bracket | |
| Fully-automated basic breakout wrench | Automated Hydraulic Adjustable Bracket | |
| Fully-automated basic breakout wrench | Manually Bolted Adjustable Bracket | |
| Adjustable Bracket Travel | 300mm (Standard) |
| Jaw/Bit Type | Tungsten carbide |
| Hardened steel alloy (Standard) |
| Range Three | Mammoth Drill Tools |
|---|---|
| Technical Specifications | All designs, specifications and components of equipment described herein are subject to change at manufacturer’s discretion at any time without prior notice. |
| Wrench Type | Fully-automated wrench or Fully-automated basic wrench |
| Clamp Type | Slide Clamp or Cam Clamp |
| Pressure Requirements | 2,500 PSI |
| Breakout Torque | 70,131 N.M | 51,72 FT/LB |
| Range | 4” up to 9” |
| Bracket Mounting | Fully-automated breakout wrench | Automated Hydraulic Adjustable Bracket |
| Fully-automated breakout wrench | Manually Bolted Adjustable Bracket | |
| Fully-automated basic breakout wrench | Automated Hydraulic Adjustable Bracket | |
| Fully-automated basic breakout wrench | Manually Bolted Adjustable Bracket | |
| Adjustable Bracket Travel | 300mm (Standard) |
| Jaw/Bit Type | Tungsten carbide |
| Hardened steel alloy (Standard) |
| Range Four | Mammoth Drill Tools |
|---|---|
| Technical Specifications | All designs, specifications and components of equipment described herein are subject to change at manufacturer’s discretion at any time without prior notice. |
| Wrench Type | Fully-automated wrench or Fully-automated basic wrench |
| Clamp Type | Slide Clamp or Cam Clamp |
| Pressure Requirements | 2,500 PSI |
| Breakout Torque | 157,000 N.M | 115,78 FT/LB |
| Range | 6” up to 12” |
| Bracket Mounting | Fully-automated breakout wrench | Automated Hydraulic Adjustable Bracket |
| Fully-automated breakout wrench | Manually Bolted Adjustable Bracket | |
| Fully-automated basic breakout wrench | Automated Hydraulic Adjustable Bracket | |
| Fully-automated basic breakout wrench | Manually Bolted Adjustable Bracket | |
| Adjustable Bracket Travel | 300mm (Standard) |
| Jaw/Bit Type | Tungsten carbide |
| Hardened steel alloy (Standard) |
The Mammoth Breakout Wrench can be designed to fit any OEM machine application. The Mammoth Breakout Wrench is not limited to any specific range only. It is recommended that only genuine OEM spare parts and consumables are used on the Mammoth Product range, to ensure full performance and operational stability. Utilising unauthorised spare parts and consumables can result in injury and potentially void warranty claims.
Enquire for Rigs not displayed here.
Mammoth Breakout Wrench Manufactured To Fit
Epiroc
| DM25 | DM45E | DMG | DMH | PV235 |
| DM25SP | DM45-EMD6 | DML | DMH100 | PV270 |
| DM30 | DM45HP | DML-60 | DMH-D | PV270SP |
| DM35 | DM45SP | DML-HP | DMM3 | PV271 |
| DM40 | DM50K | DML-LP | DM70 | PV271SP |
| DM40SP | DM50 | DML-SP | DM70E | PV275 |
| DM45 | DM50E | DML-XL | DMM | PV351 |
| DM45/HP | DM50XL | T4BH | DMM2 | PV351E |
| DM60 | DMM25SPH |
Sandvic
| C40K | D45K | D25KS | D90KS | 1190E |
| C60K | D45KS | D245KS | D90K-SP | 1190DSP |
| C75K | D50K | D75K | D90KS-SP | DKII |
| C55SP | D50KS | D75KS | D55SP | DR460 |
| D40K | D60K | D80K | D55SPH | D60KL |
| D40KS | D60KS | D90K | D75KL | T60K |
| D75EX | T60KS |
Joy Global (P&H)
| 70HA | 100B | GD70 | 250XP-DL | 250XPC |
| 100A | 100XP | GD70H | 250XP-ST | 320XPC |
| 120A | GD100 |
Gardener Denver
| GD45 | GD60 | GD80 | GD120 |
Caterpillar (Bucyrus, Reedrill, Marion, Terex)
| 33HR | 49HR | MII | SK25 | SK60II | SKS |
| 33HR-SP | 49R | M2 | SK30I | SK70 | SKS-12 |
| 35HR | 49RH | M3 | SK35 | SK70E | SKS-15 |
| 35R | 49RII | M3B | SK40 | SK75 | SKS-16 |
| 35RII | 49RIII | M4 | SK40/50 | SKF | SKS-W |
| 37HR | 50R | M5 | SK451 | SKF-11 | SKSS |
| 39HR | 55R | MD6240 | SK50 | SKF-11.5 | SKSS-12 |
| 39R | 59HR | MD6290 | SK50I | SKF-12 | SKSS-13 |
| 40R | 59R | MD6420 | SK50T | SKF-15 | SKSS-15 |
| 45R | 60R | MD6540 | SK60 | SKSS-16 | |
| 47R | 60RII | MD6640 | SK60E | SKT | |
| 60RIV | MD6750 | SK60I | SKTT | ||
| 61R | |||||
| 67R |
OZM
| SBSH-250 | SBSH-270 |
Rudgormarsh
| SBSH250 MNA32 |
Robbins
| RR10 | RR10HD | RR11E | RR12E |

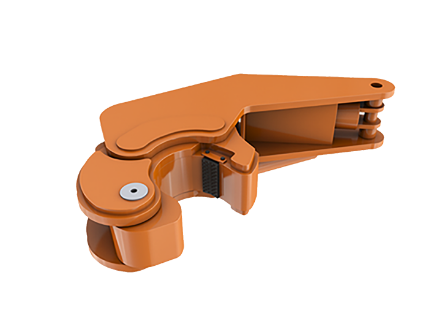

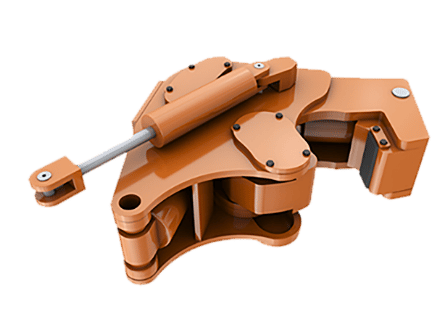

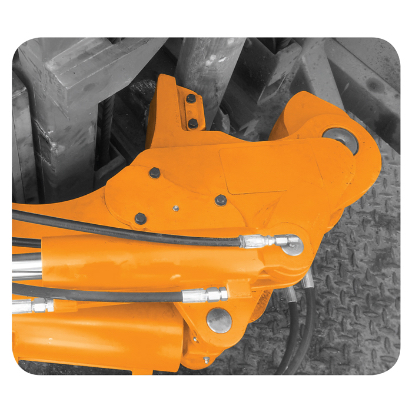

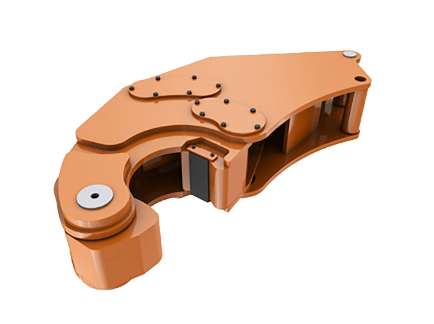

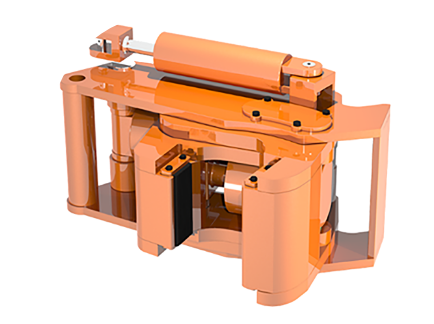

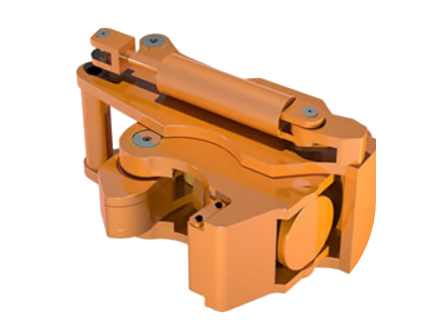

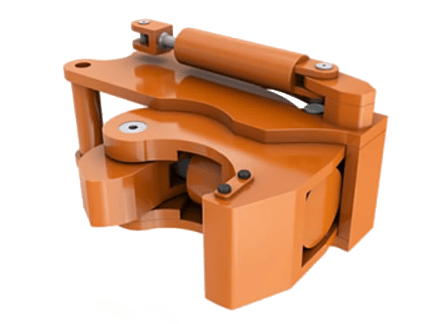

Mammoth Breakout Wrench Product Configurations
Wrenches available in
Unit Sizes
4” | 4 1⁄2” | 5” | 5 1⁄4” | 5 1⁄2” | 6” | 6 3⁄8” | 6 1⁄2” | 7” | 7 1⁄2” | 7 5⁄8” | 8” | 8 1⁄2” | 8 5⁄8” | 9” | 9 1⁄4” | 9 1⁄2” | 10” | 10 1⁄2” | 10 3⁄4” | 11” | 11 1⁄2” | 11 3⁄4” | 12 1⁄4” | 12 1⁄2” | 12 3⁄4” | 13 3⁄8”
Unit Sizes
4” | 4 1⁄2” | 5” | 5 1⁄4” | 5 1⁄2” | 6” | 6 3⁄8” | 6 1⁄2” | 7” | 7 1⁄2” | 7 5⁄8” | 8” | 8 1⁄2” | 8 5⁄8” | 9” | 9 1⁄4” | 9 1⁄2” | 10” | 10 1⁄2” | 10 3⁄4” | 11” | 11 1⁄2” | 11 3⁄4” | 12 1⁄4” | 12 1⁄2” | 12 3⁄4” | 13 3⁄8”

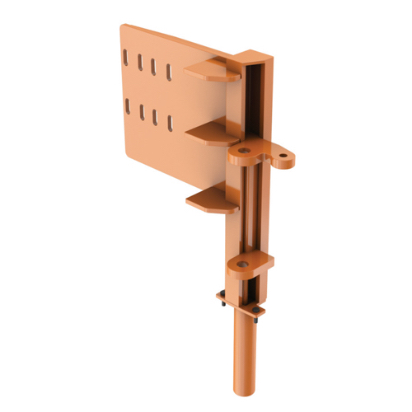

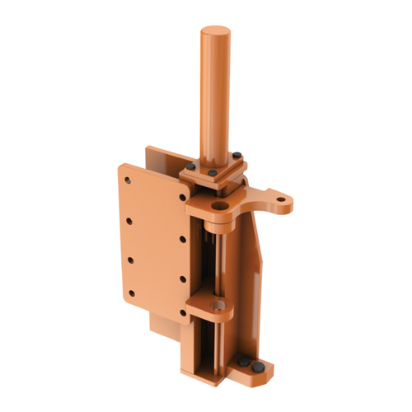

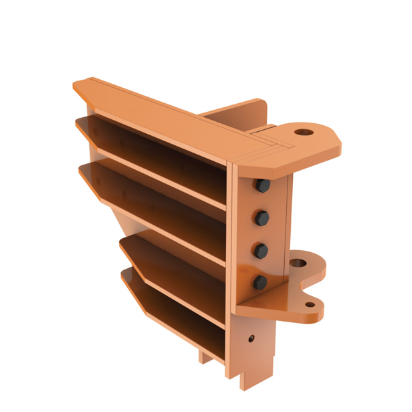

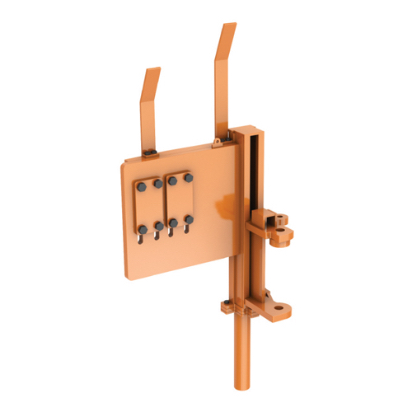

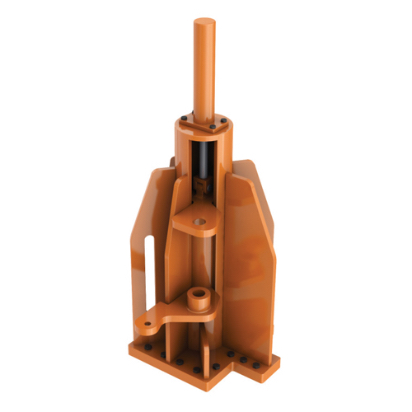

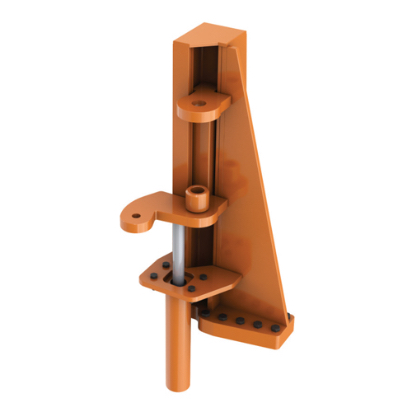

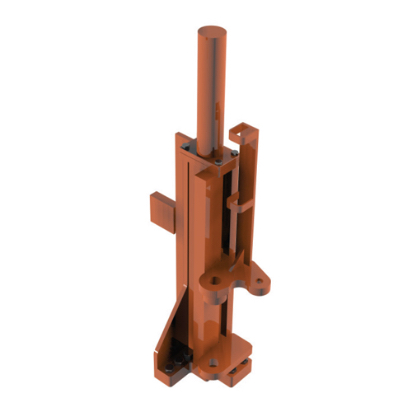

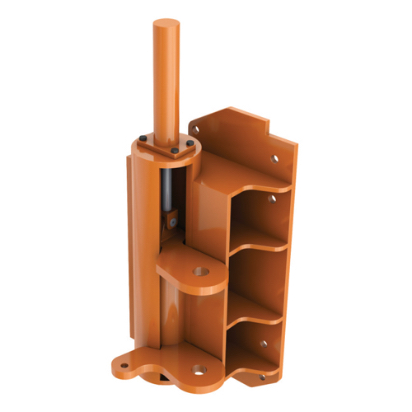

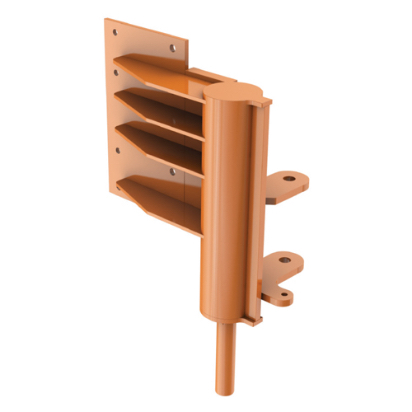

Mammoth Breakout Wrench Mounting Brackets
Mast Mounted
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Right Mounted
Mast Mounted
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Right Mounted
Mast Mounted
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Right Mounted

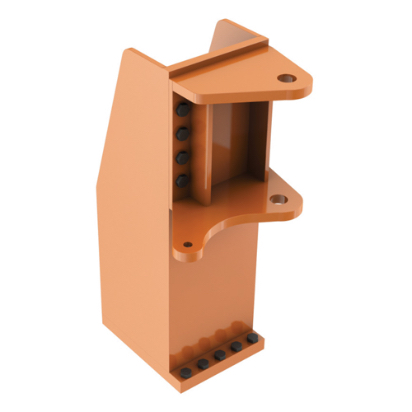

Stand Alone Fixed
Bracket
Manually Bolted
Adjustable Bracket
Left Mounted
Stand Alone
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Left Mounted
Stand Alone
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Left Mounted
Stand Alone
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Right Mounted
Mast Mounted
Adjustable Bracket
Automated Hydraulic
Adjustable
Left Mounted
Mast Mounted
Adjustable Bracket
Automated Hydraulic
Adjustable Bracket
Left Mounted
Mast Mounted
Fixed Bracket
Manually Bolted
Adjustable Bracket
Left Mounted
Mammoth Breakout Wrench Bit Configuration
Raised Tungsten Bit
TI25 / 9.5B
Tungsten Inserted
jaws/bits used for:
Hardened Casing Hammers
Alloy Steel Pipes

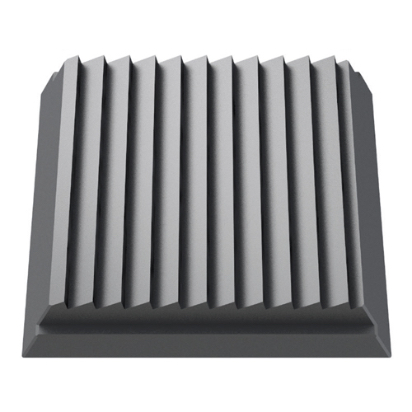

Normal Bit
B21L / B21R
Hardened Alloy Steel
jaws/bits used for:
Normal Steel Pipes (ST80)
Alloy Steel Pipes

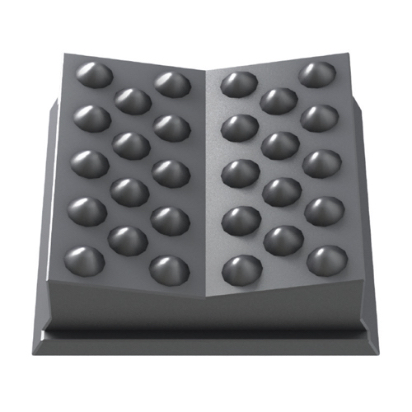

Mammoth Tungsten Bit
ROC L8
Smartdoc D60
Smartdoc D65
Technical Specifications
All designs, specifications and components of equipment described herein are subject to change at manufacturer’s discretion at any time without prior notice.
| Body Material | Roc-tuff / Heat treated | ||||
| Inserts | Tungsten Carbide Ballistic Insert | ||||
| Life expectancy | 4 – 6 Months |
The Mammoth Tungsten Bit can be designed to fit any OEM machine application.
The Mammoth Tungsten Bit is not limited to any specific range only.
It is recommended that only genuine parts and consumables are used on the Mammoth Product range, to ensure full performance and stability during operation.
Enquire for Rigs not displayed here.

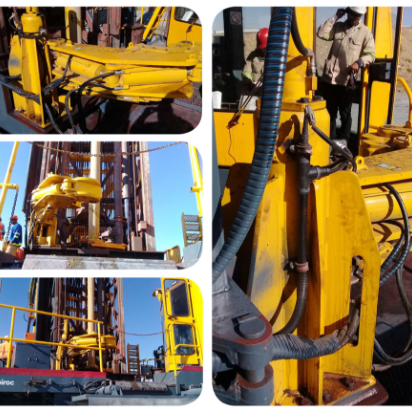

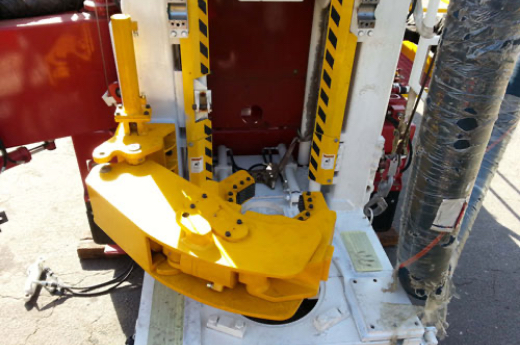

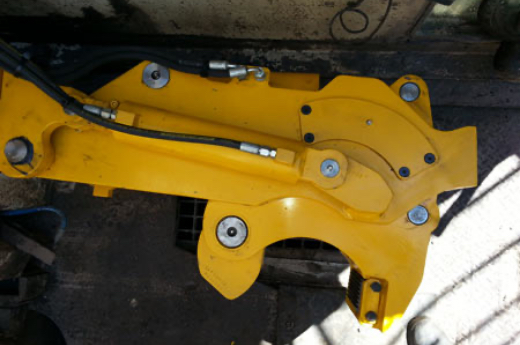

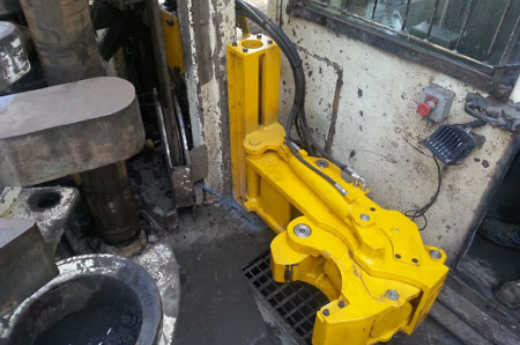

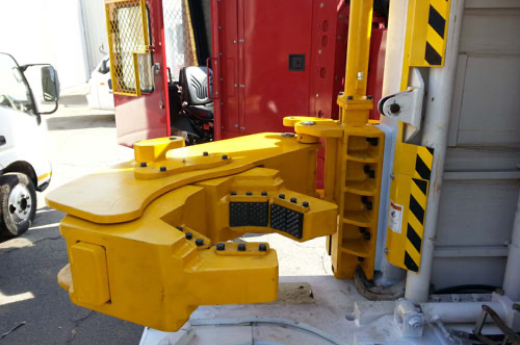

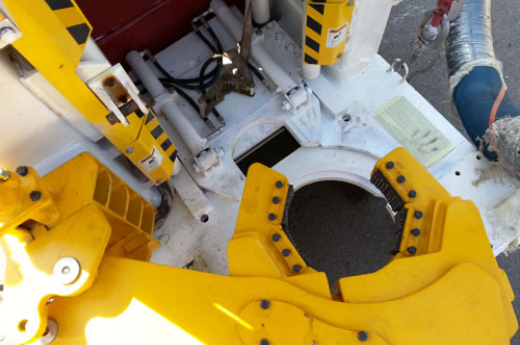

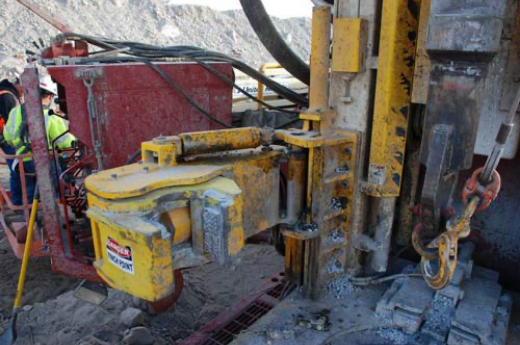

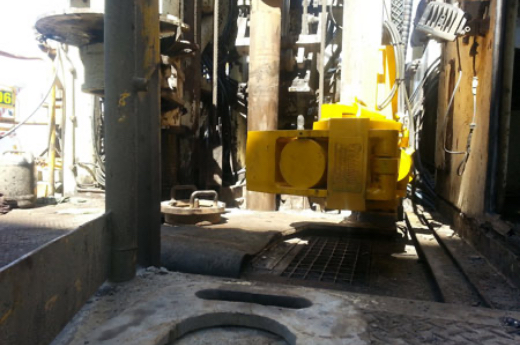

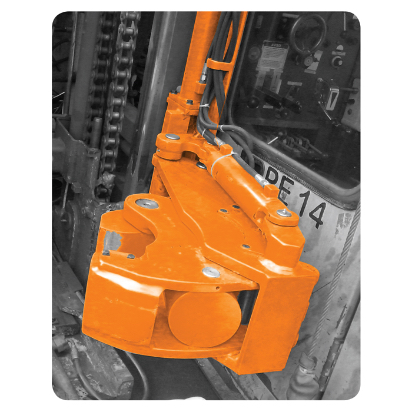

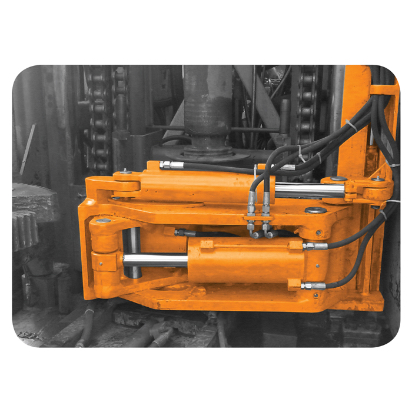

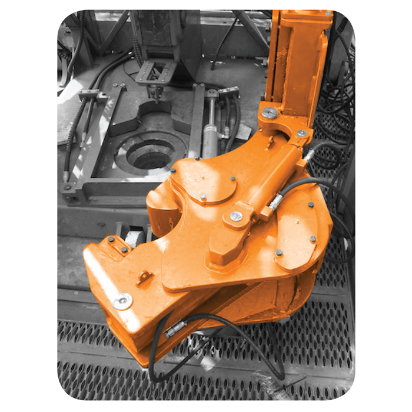

Mammoth Breakout Wrench Fitment Examples

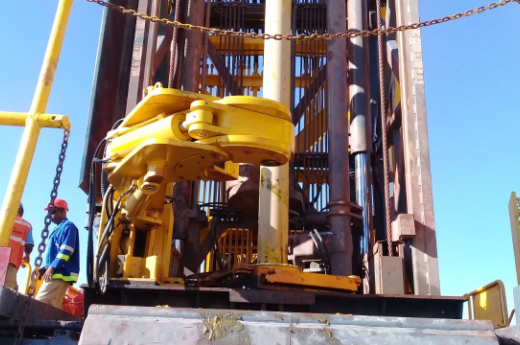

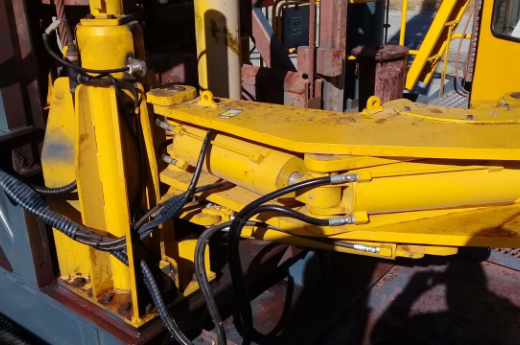

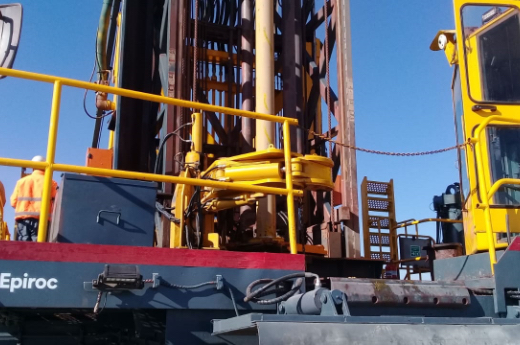

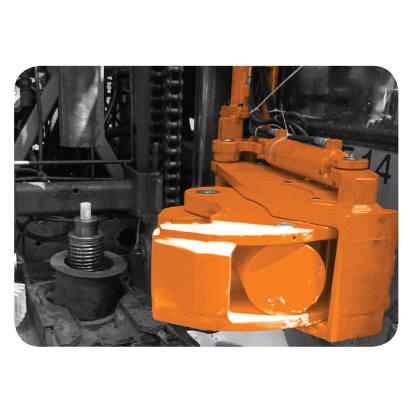

The Mammoth Breakout Wrench works with the Flanders Automation System

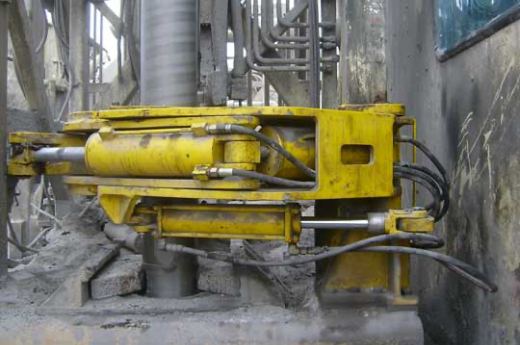

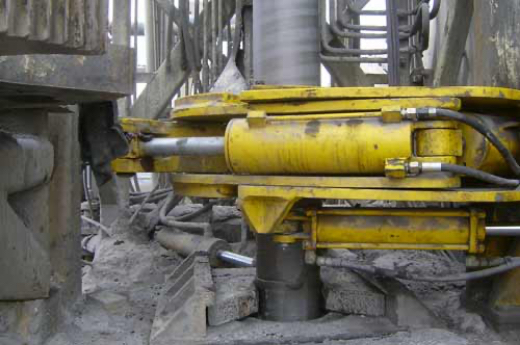

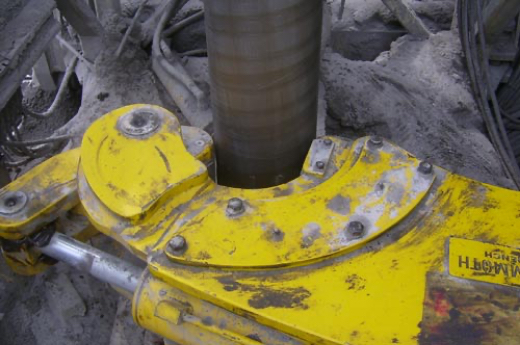

The Mammoth Breakout Wrench fitted to a DMM2 / CDM 75 Rig

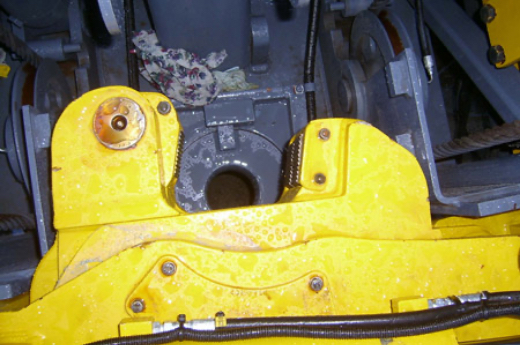

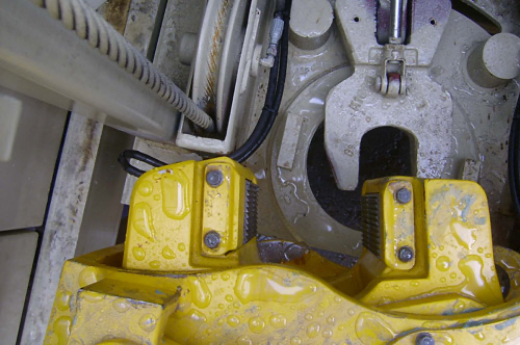

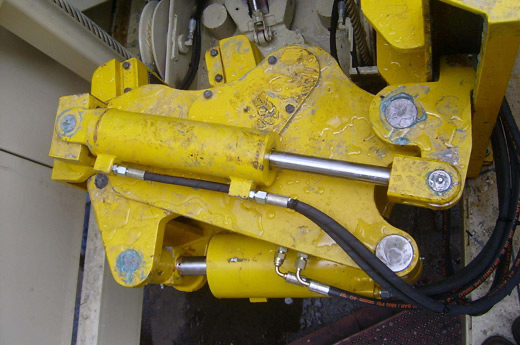

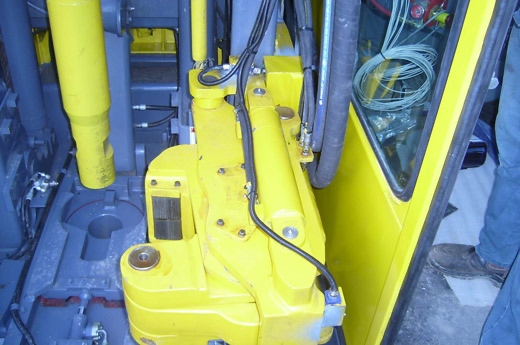

The Mammoth Breakout Wrench fitted to a DM30II/CDM30 Rig

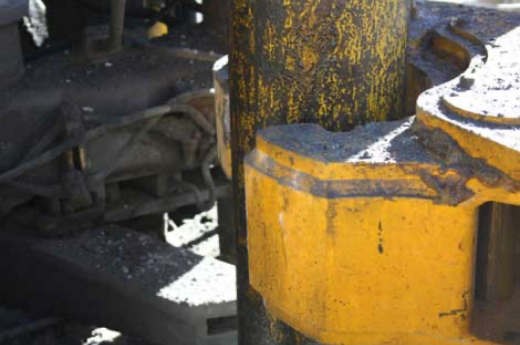

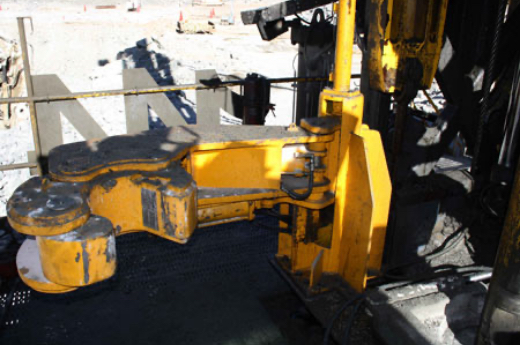

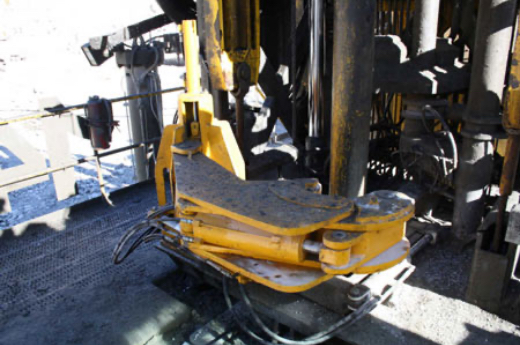

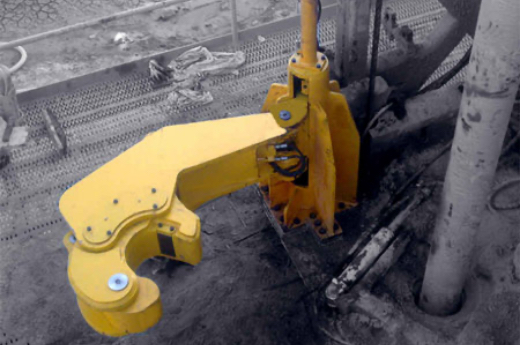

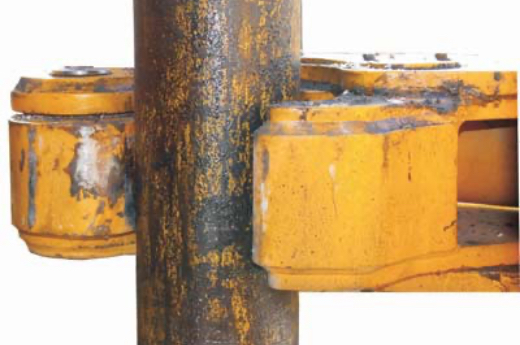

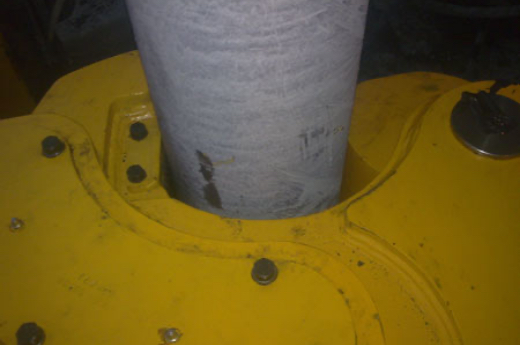

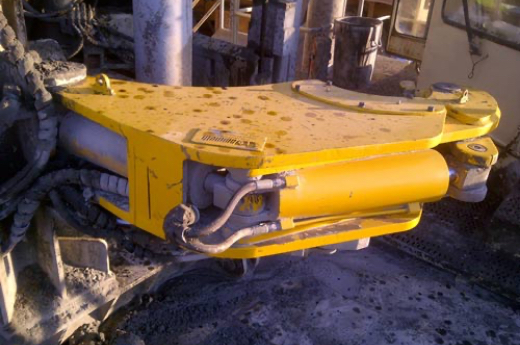

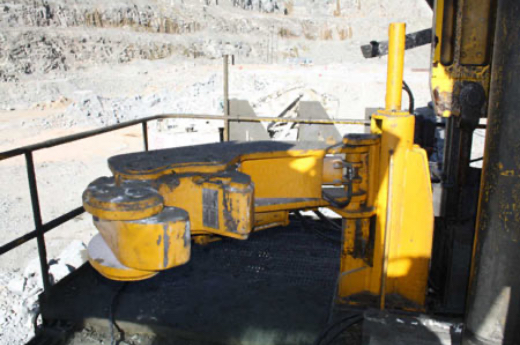

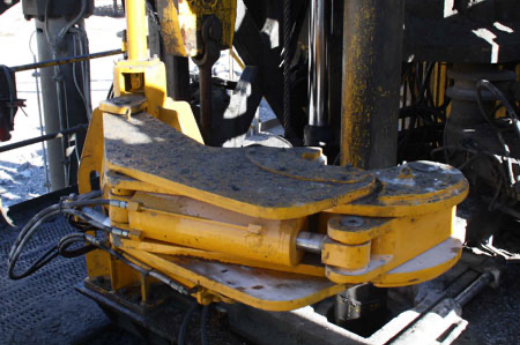

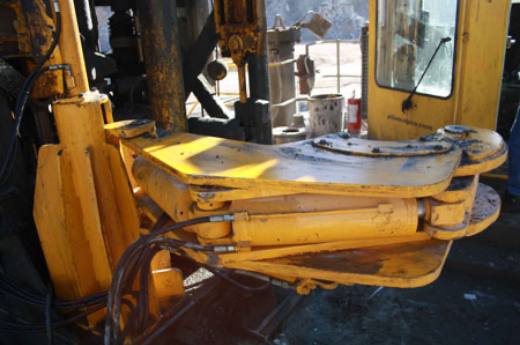

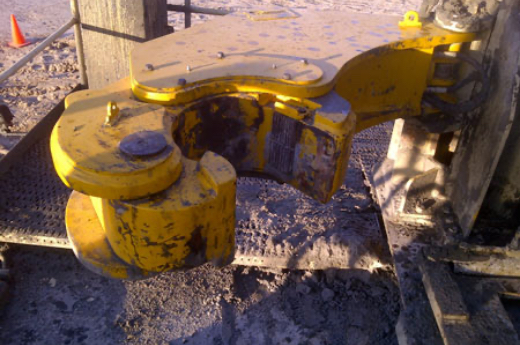

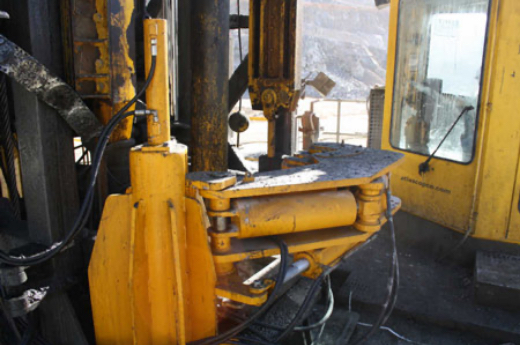

The Mammoth Breakout Wrench fitted to a PV351 Rig

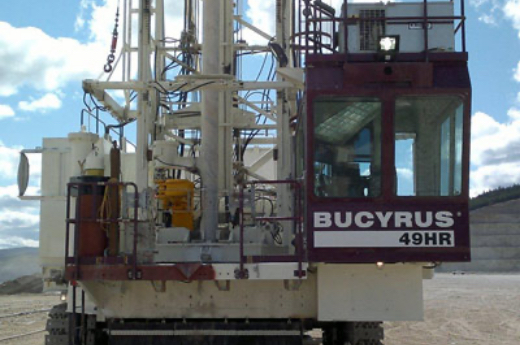

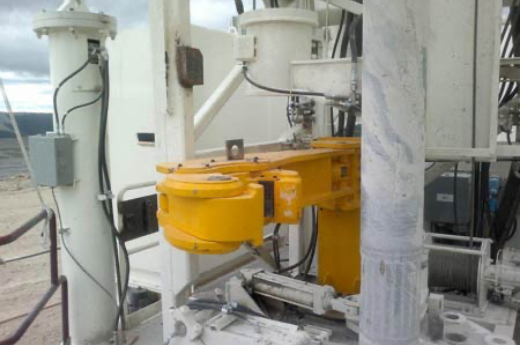

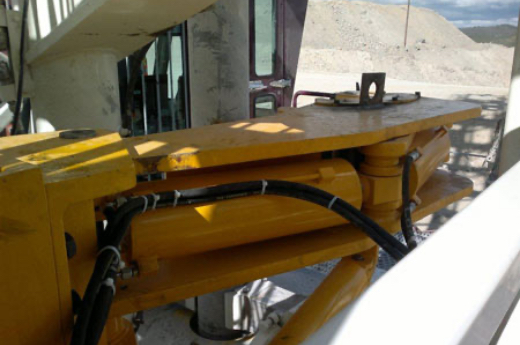

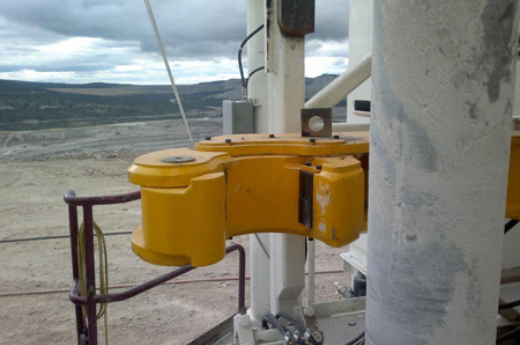

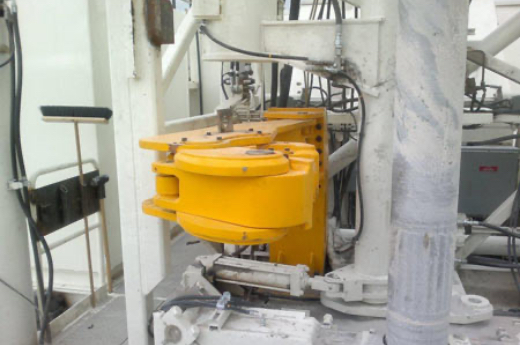

The Mammoth Breakout Wrench fitted to a BE49R Rig

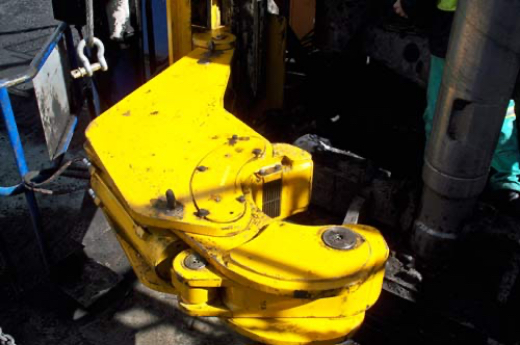

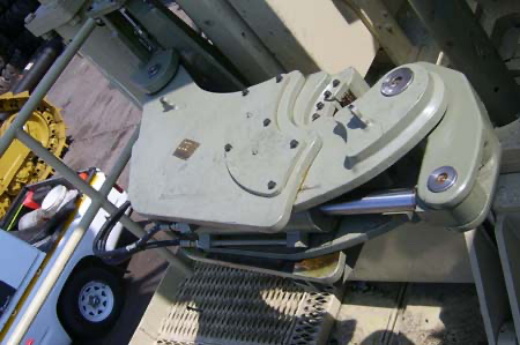

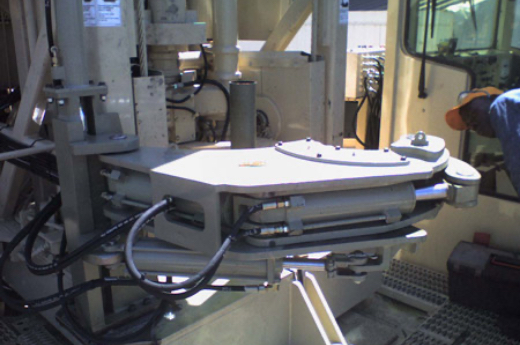

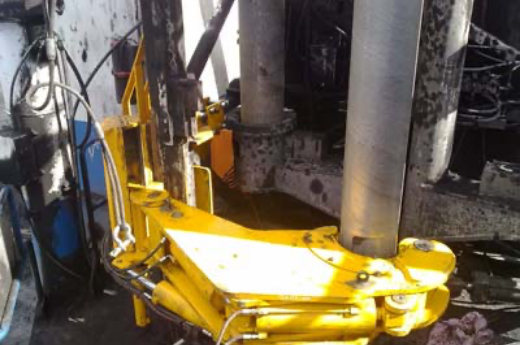

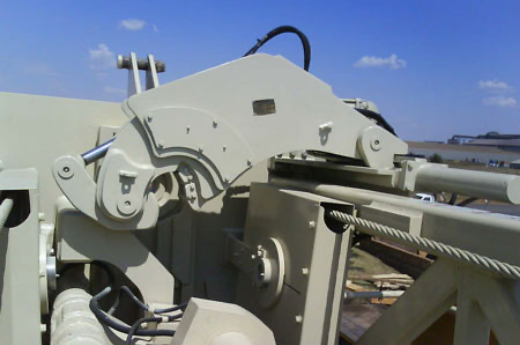

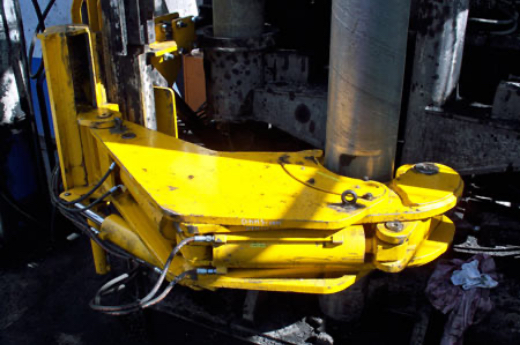

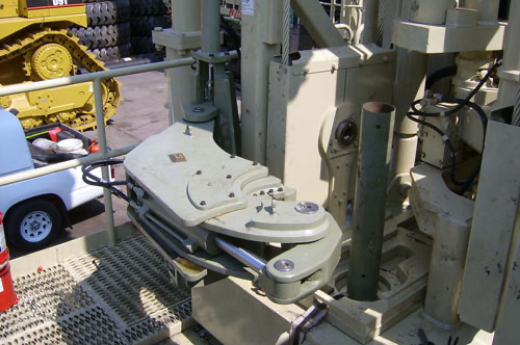

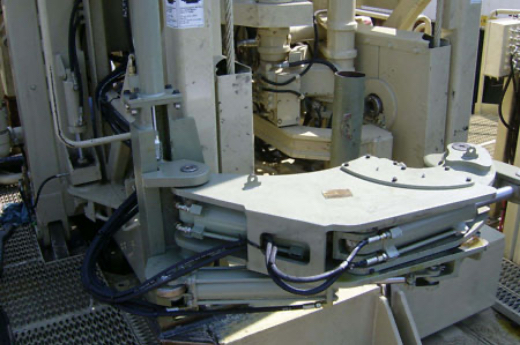

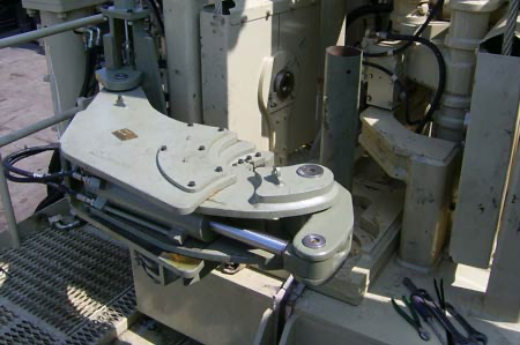

The Mammoth Breakout Wrench fitted to a PV271 / PV275

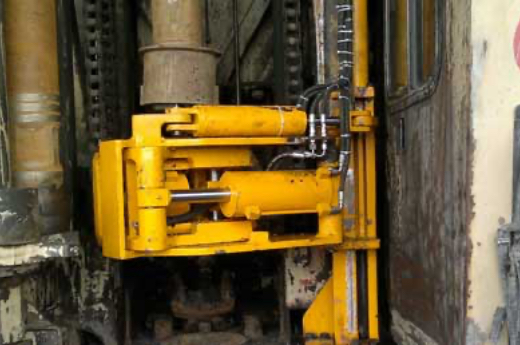

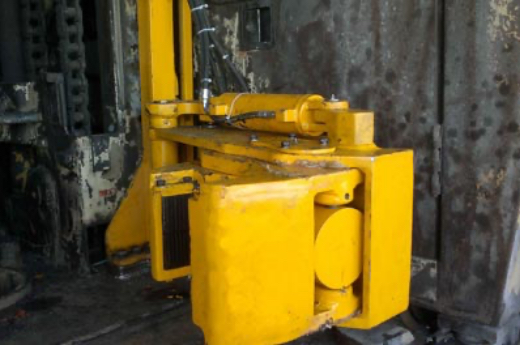

The Mammoth Breakout Wrench fitted to a T4BH Rig
The Mammoth Breakout Wrench Series (T4BH Rig) in Parked Position
The Mammoth Breakout Wrench Series (T4BH Rig) in Engaged Position

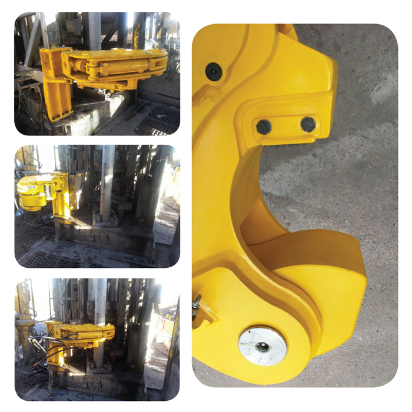

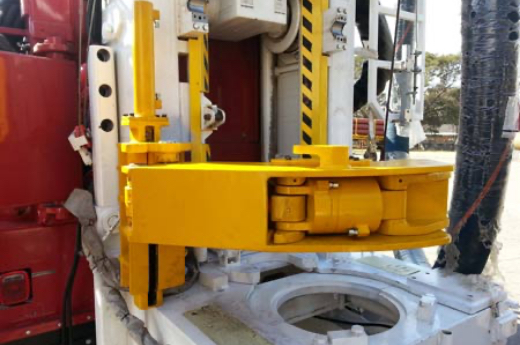

Mammoth Breakout Wrench Gallery
Mammoth Breakout Wrench Videos
Mammoth Technologies Pit Viper 351 Breakout Wrench fitted to an Epiroc Pit Viper 351 Drill Rig
Mammoth Technologies Breakout Wrench fitted to an Epiroc Pit Viper 271, 275

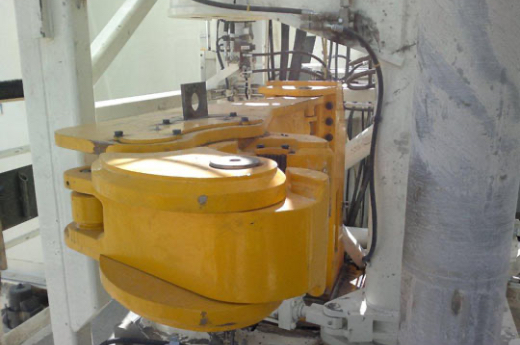

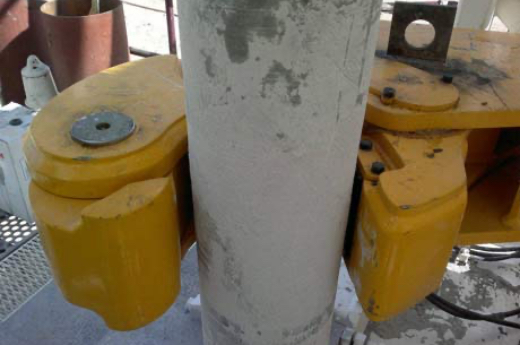

CAT MD6640 BE49HR
GD120
Epiroc T4BH
Epiroc Pit Viper 351
Epiroc DM30
Epiroc DML4
